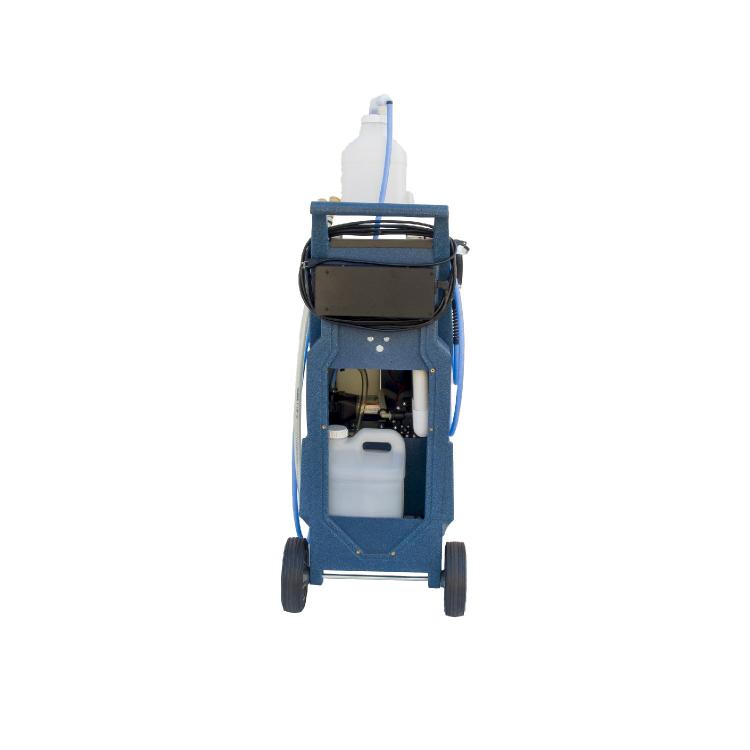

• CVT+ (3-Way) Fluid Service Back View
  • CVT+ (3-Way) Fluid Service Back View

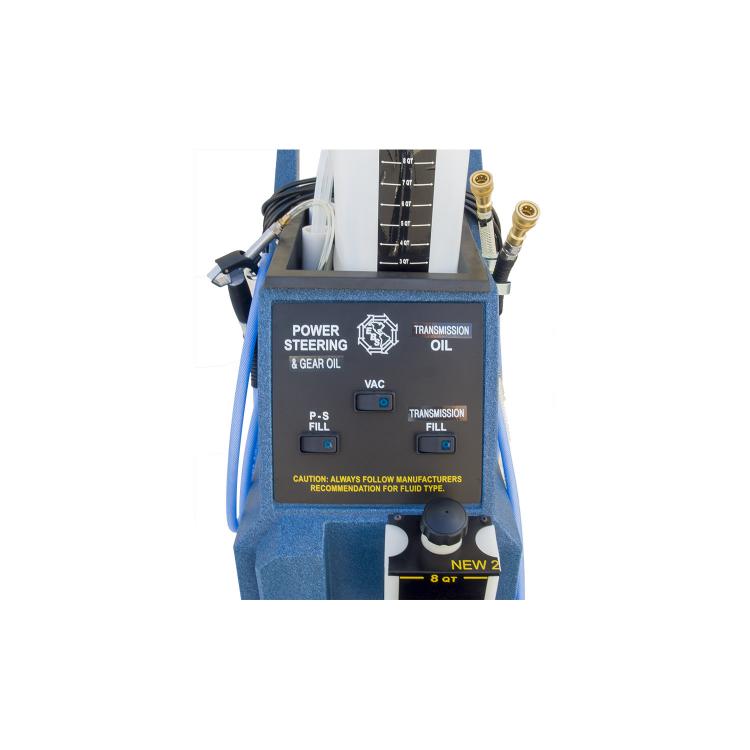

  • CVT+ (3-Way) Fluid Service Close Up View

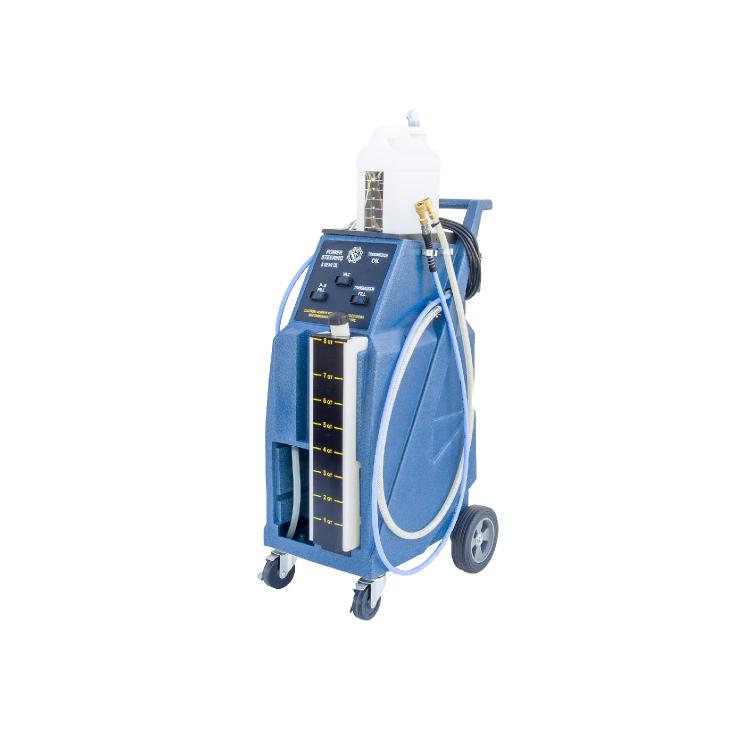

  • CVT+ (3-Way) Fluid Service Left View

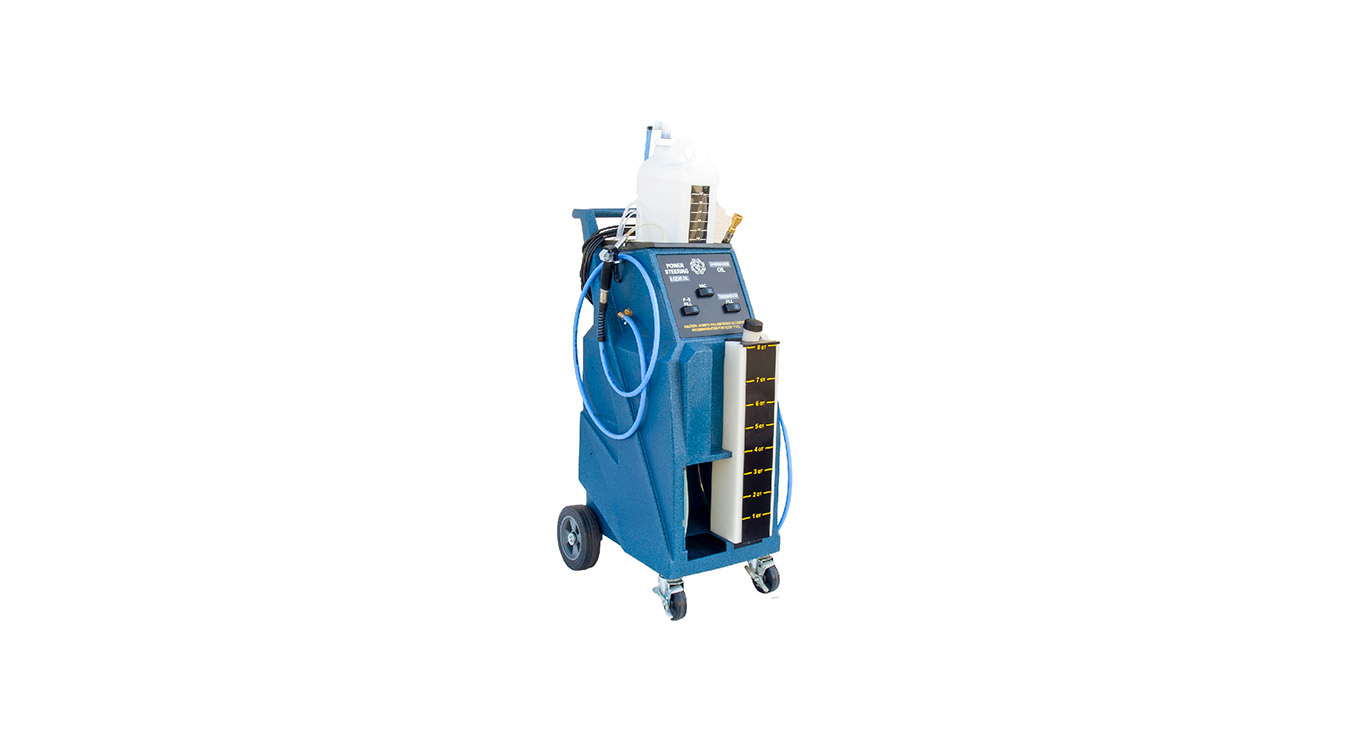

  • CVT+ (3-Way) Fluid Service Right View
  • CVT+ (3-Way) Fluid Service Back View
  • CVT+ (3-Way) Fluid Service Back View
  • CVT+ (3-Way) Fluid Service Close Up View
  • CVT+ (3-Way) Fluid Service Left View
  • CVT+ (3-Way) Fluid Service Right View
  • Equipment cabinet made from heavy-duty industrial grade polyethylene – 8 inch rear wheels with locking front casters.
  • 110vac powered, 22 ft. power cord, converted to 12vdc.
  • 4 ft. service hoses - .315”, .250  and .187” od’s – hose drain reservoir in cabinet.
  • Separate 7 ft. PS and Gear Fill Hoses, 6ft. Vac Hose for all fluids.
  • Receptacle for 32 to 64oz New Gear Oil or Power Steering Fluids and a 2gal. New Fluid Tank for oils or transmission fluids – do not mix different fluids in this tank.
  • 1.4 GPM Trans/Oil Fill Pump, 4 GPM Gear/PS Fill Pump.
  • 3.3 GPM rated Vacuum Pump for all fluids.
  • Two-2.5 Gal Waste Tanks – 1 in top tray plus 1 in rear – manually emptied.
  • Valved Dipstick Manifold to prevent mixing of fluids during service.
